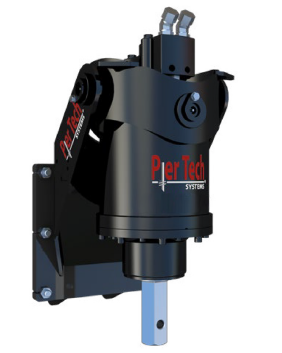

13K – 16K Helical Drive Head

PierTech’s Standard Helical Drive Heads were designed specifically for helical pier or pile installation.  Designed by real-world engineers who understand the demands of the foundation industry, these drive heads are designed to perform under the most strenuous environments.  Their design also allows them to run at the highest efficiency rates so that they will perform dependably for years.

Features

  • High efficiency hydraulic motor
  • Built-in pressure relief valve
  • ICV (Inertia Control Valve) prevents sudden decompression of oil, caused by pile kick-back
  • Designed for maximum strength
  • Ultra duty shaft
  • Case Drain is not required
  • 3 year gearbox warranty

More Torque Less Pressure

Two pressure series are available to suit your requirements:

  • Standard pressure series for machines with 3500 PSI (ADS range)
  • Low Pressure series, for machines with 3000 PSI (ALS range)

See It In Action

Specifications

Description 13ADS 16ADS 13ALS 16ALS
NOMINAL TORQUE (FT LBS) 12,800 16,200 13,810 17,334
MAX PRESSURE – DO NOT EXCEED 3500PSI @ 33 GPM 3500PSI @ 33 GPM 3500PSI @ 33 GPM
3500PSI @ 33 GPM
MAX FLOW – DO NOT EXCEED 53 GPM @2200 PSI 53 GPM @2200 PSI 53 GPM @2200 PSI 55 GPM @2200 PSI
MAX HORSE POWER 67 67 67 67
PRESSURE RELIEF VALVE INCLUDED INCLUDED INCLUDED INCLUDED
INERTIA CONTROL VALVE INCLUDED INCLUDED INCLUDED INCLUDED
STANDARD OUTPUT SHAFT 3″ HEX 3″ HEX 3″ HEX 3″ HEX
WEIGHT (LBS) 370 LBS 370 LBS 370 LBS 370 LBS
OVERALL LENGTH (IN) 39.6″ 39.6″ 39.6″ 39.6″
DIAMETER (IN) 11.4″ 11.4″ 11.4″ 11.4″

To find out more about our hand-held helical drives, please contact our equipment advisors.
