Thread Rod Square Shaft System provided by PierTech helps to speed up construction, allowing for a quick and easy installation for a electric utility structures. The system is a permanent foundation solution that will last a lifetime.
Why use PierTech's patented system?

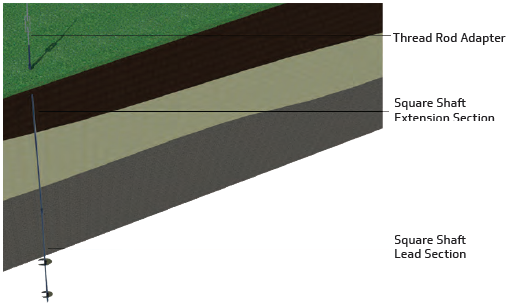

| Product | Product Description | Application Description |
|---|---|---|
| Square Shaft Helical Anchor | Square bar with one or more welded helical bearing plates. | Typical square shaft anchor section 1-1/2" square bar but also come in 1-3/4" in 5ft or 7ft long square bar, with a double or triple helix. |
| Thread Rod Adapter | High-strength steel bracket that attaches to the square shaft helical anchor | Steel bracket attaches to the top of the 1 -1/2" or 1- 3/4" square shaft helical anchor using the threaded rod and required nuts and bolts which attach it to the connector. |
| Anchor Equipment Package | Hydraulic rotary motor and gearbox attached to a power source used to install the pile into the ground. | The helical equipment package will normally be mounted to a skid steer or excavator, and the standard installation drive heads will range from 6,000 ft-lbs to 360,000 ft-lbs. A digital or analog torque monitor will be used to calculate the pile's capacity. |
